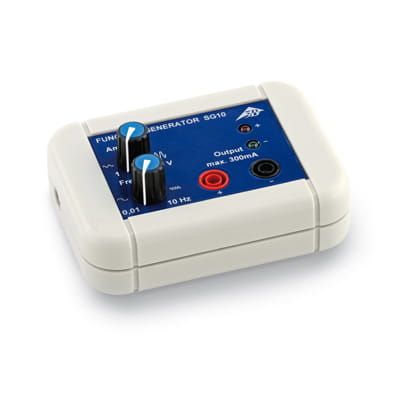

Function Generator SG 10 (230 V, 50/60 Hz)

Bądź pierwszym który oceni ten produkt

SKU

003-U8498288-230

283.91 zł

Chat with Seller ABC Euroscience

Vendor is Online

283.91 zł

Dostawa:

7-15 days

Dostępny

Ilość

Zapisz ten produkt Add to Compare

Informacje o produkcie

Informacje o tym produkcie

Sine-wave generator, which is particularly easy to use, featuring a power amplifier
for use in student experiments. Includes 12 V AC plug-in power supply. One red
and one green LED indicate the positive and negative half-waves of the output
voltage. Their brightness corresponds to the configured amplitude. The way the
output signal changes over time can be traced by means of an analog voltmeter
with zero-point in the centre or by means of an oscilloscope. The output is protected
against short-circuits and against induced voltages as well as spark discharges.

Safety transformer conforming to EN 61558-2-6.
Safe isolation between power supply and output circuits.

Signal form: Sine-wave
Frequency range: 0.01 – 10 Hz
Output amplitude: 1 – 10 Vpp, continuously adjustable
LED display: As of 2 V output voltage
Output power: 1.5 W permanent
Output current: 300 mA max.
Distortion factor: < 5%
Connectors: 4-mm safety sockets
Power supply: 12 V AC, 500 mA plug-in power supply
Dimensions: 100 x 75 x 35 mm approx.
Weight: 400 g approx. including plug-in supply
