Objective: Messung der relevanten Kennlinien eines npn-Transistors

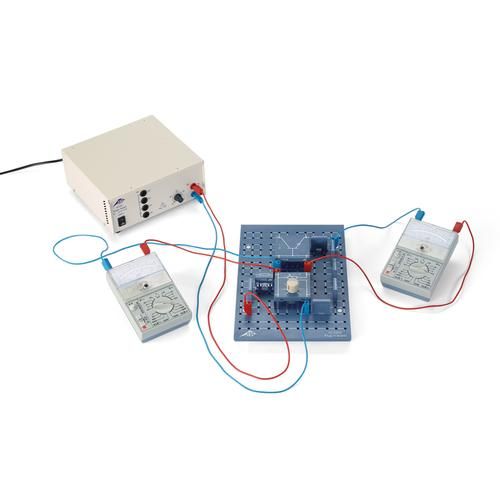

A bipolar transistor is an electronic component composed of three alternating p-doped and n-doped semiconductor layers called the base, the collector and the emitter. Depending on the sequence of the layers, the transistor may either be termed npn or pnp. The response of a bipolar transistor may be distinctively described by, for example, an input characteristic, a control characteristic and an output characteristic. In this experiment, examples of these are to be measured for an npn transistor, displayed on a graph and evaluated.
